PRODUCT DESCRIPTION

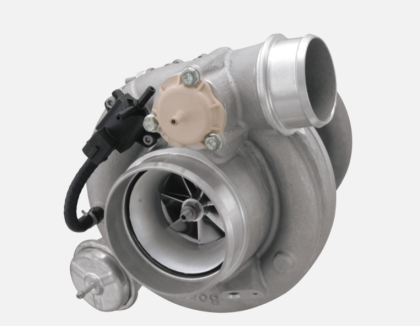

Turbo Features
- 900hp application
- Gamma-Ti turbine wheel
- Water cooled bearing housing
- Dual ceramic ball bearing assembly with metal cage
- Forged milled extended tip compressor wheel
- Compressor recirculation valve (a.k.a BOV)
- Stainless steel turbine housing
- Standard T3 or T4 mounting flange (depending on part number)
- Large internal wastegate
- Boost solenoid valve
Compressor Wheel Size 68/91mm
Turbine Wheel Size 80/73mm
This turbo can be ordered as a super core configuration. As a super core, the turbo will not include turbine housing, assembly clamp hardware, and wastegate parts. If you want the complete turbo, just choose what housing type you want to go with it.
Not Included With Turbo Assemblies
- Speed sensor
- Turbine outlet v-band
- Turbine inlet gasket
- Water port fittings
- Oil drain gasket or drain port fitting
